3.2TON 2 Post Lift

asym ton3-2 warranty2
  • Delivery Included
  •  Installation Included
Description

Description

Asymmetric Lift without baseframe for greater space free area at work.

• Equipped with two lifting rams which do not require maintenance. Non bearing cables for perfect synchronisation of the trolleys no matter what distribution  weight is loaded.

• Designed with 4 short, super lowered three stage arms with profile parallel to the floor for theasymmetric lifting of wide low profile vehicles. Pads min.height 95mm only.

• Overload valve and safety valve tin case of hydraulic hose failures.

• Descent velocity controlled by means of hydraulic valve.

• Mechanical support device with automatic activation and deactivation by means of electro magnetic valve insuring maximum safety during locking procedures

Technical Spec

Technical Specifications

Capacity 3.2 tonne
Three-phase motor 2.2 kw
Voltage 230-400 V / 50 Hz
Lifting 37 sec
Descent 37 sec
Weight 690 kg

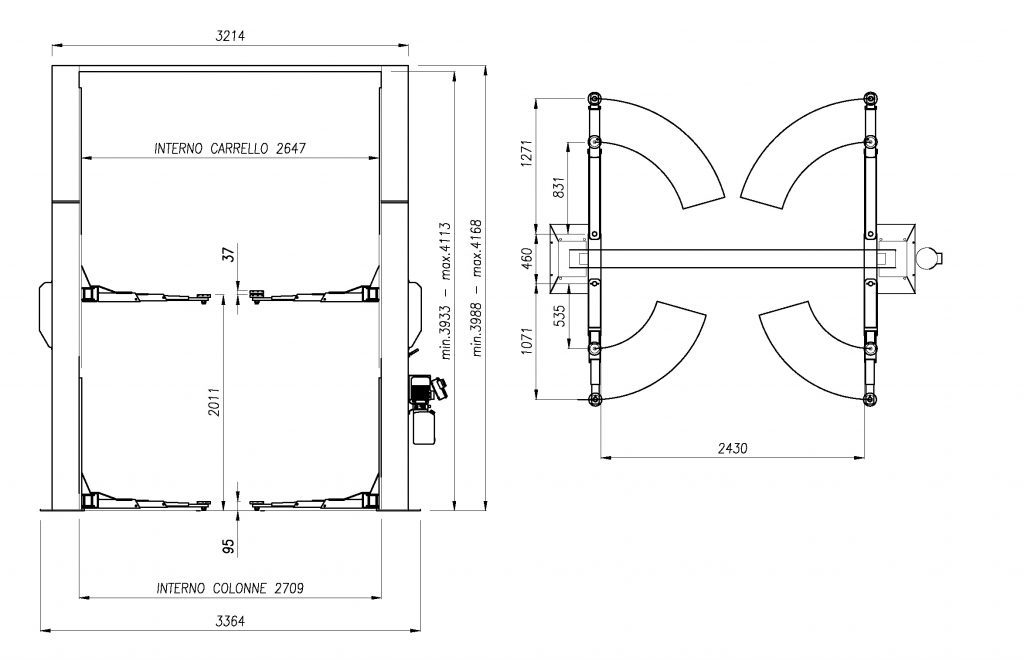

Drawings
Downloads
